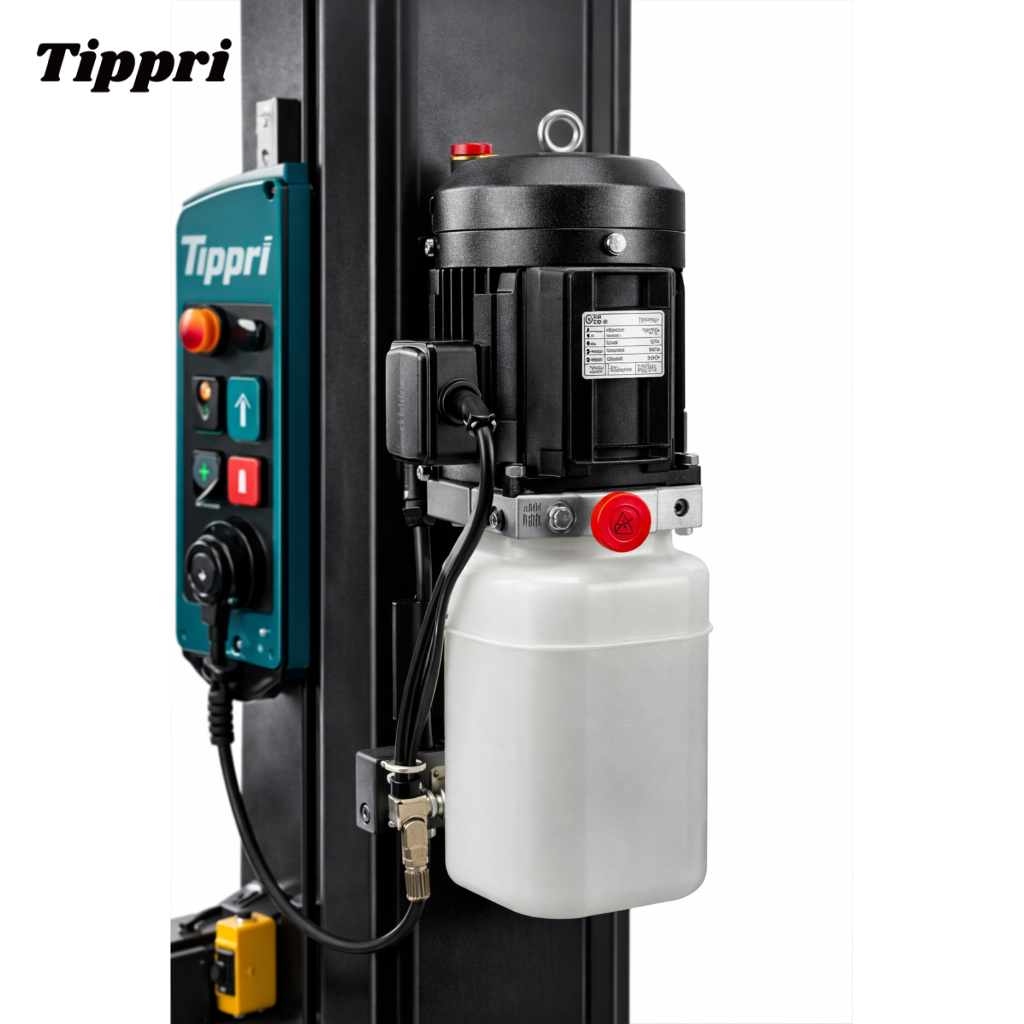

This is an overhead or “Clear-Floor” two-post lift with a nominal 10,000 lb. lifting capacity. The two heavy-duty steel columns are joined at the top by a structural cross-bar, which houses the hydraulic hoses and equalization cables (hence “Clear-Floor”). The hydraulic power unit is typically mounted on one column near the top. The lift uses a chain-over-cylinder or direct-drive hydraulic system for smooth, stable operation. It features durable, automatically engaging arm restraints and a multi-position mechanical safety lock system on both columns, usually with a single-point safety release for quick and simultaneous lowering. The adjustable, low-profile lift pads are designed to quickly and securely engage a wide range of vehicle frames.
Key Features
-
Clear-Floor Design: No obstructions on the floor between the columns for easy movement of tools.
-
Asymmetric/Symmetric Arm Configuration: Often features two-stage or three-stage arms for maximum reach and retraction, accommodating both large trucks (symmetric) and enabling better door clearance on cars (asymmetric setup).
-
Overhead Safety Shut-Off: A limit switch or bar at the top automatically stops the lift if a vehicle contacts the overhead crossbeam.
-
Single-Point Safety Release: Allows the operator to disengage both column safety locks simultaneously from one location.
-
Automatic Arm Restraints: Heavy-duty gear locks automatically engage to hold the swing arms in place when the lift is raised.
-
Adjustable Screw Pads: Low-profile, heavy-duty screw-up pads with stackable height adapters for secure frame engagement.
Technical Specifications
| Specification | Typical Value (USA Market) |
| Lifting Capacity | 10,000 lbs. (4,536 kg) |
| Drive System | Electro-Hydraulic (Chain-over-Cylinder or Direct Drive) |
| Power Unit | 220V, 60Hz, 1 Phase, 3 HP Motor (Common) |
| Time to Full Rise | $\sim45 – 60$ seconds |
| Overall Height | $\sim140″ – 145″$ (11′ 8″ to 12′ 1″) |
| Overall Width | $\sim135″ – 141″$ |
| Max Lift Height (Under Pad) | $\sim70″ – 72″$ |
| Min. Pad Height | $\sim4″$ |
| Safety Certification | ETL Certified Power Unit; Reputable models are ALI/ANSI Certified |
| Concrete Requirement | Minimum 4″ thick, 3,000 psi concrete (check manufacturer’s manual) |
Best Uses
-
General Service and Repair: Oil changes, brake jobs, exhaust work, suspension repair, and general maintenance.
-
Light-Duty Fleet Management: Servicing passenger cars, small vans, SUVs, and light trucks (up to 3/4 ton).
-
Vehicle Storage: Providing a two-car parking solution in garages with sufficient ceiling height.
Best For
-
Professional Repair Shops (Independent Garages, Tire Centers)
-
High-End Home Garages or Hobby Shops with a ceiling height of at least 12 feet.
-
Mechanics who require the convenience of a clear, obstacle-free floor to roll equipment underneath the vehicle.
